Unit Properties dialog box

This dialog box displays a summary of all data that MEGS_Log has associated with a particular unit.

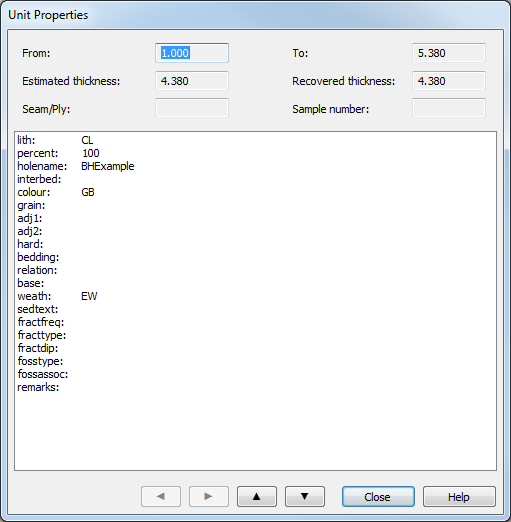

Unit Properties dialog

If a unit is interbedded (ie. it contains multiple elements) then the left and right arrow buttons at the bottom of the dialog box allow you to look at the properties for each element in the unit in turn. Unit level data are displayed as the first (leftmost) panel.

If the unit is not interbedded then the left and right arrow buttons are disabled.

You can use the up and down arrow buttons at the bottom of the dialog box to change the unit being displayed to the one higher or lower in the borehole respectively.

Fields that are greyed out in the top part of the dialog box are not available in the schema associated with the borehole.

You can display this dialog by selecting the Unit Properties command under the Borehole popup menu.
