Seams and Plies Editor dialog box

Use the Seams and Plies Editor dialog box to edit the list of seams and plies available for correlation.

Unless your administrator has enabled Client mode, you can display this dialog box by clicking the Edit Seams and Plies button on the Settings tab of the Options dialog box. If Client mode has been enabled then this dialog box is not available.

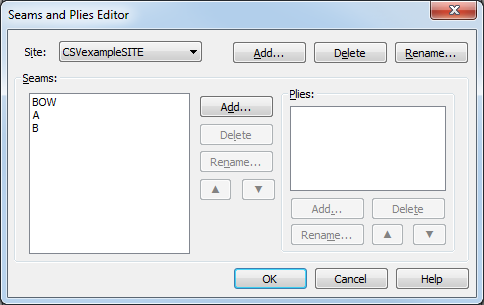

Seams and Plies Editor dialog box

The order of seams and plies is not significant in this version of MEGS_Log (apart from the display order when selecting seams or plies in other dialog boxes), but may be used in later versions to assist with correlation. As a result, you should endeavour to maintain your seams in plies in the order that they typically appear as you move down through the strata of the particular site.

Changes made to the seams and plies are saved to the users MEGS_Log configuration file when you click the Ok button.
