Schema Editor dialog box

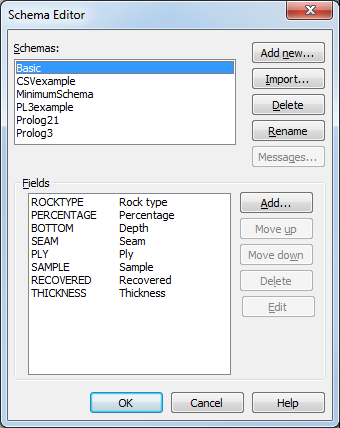

The Schema Editor dialog box allows you to edit the schemas used in MEGS_Log. A schema is the list of data fields assocatied with each element in a borehole.

You can display this dialog box by clicking the Edit Schemas button on the Settings tab of the Options dialog box.

Changes to schemas only affect boreholes that are loaded after any changes are made. Boreholes that are already loaded retain the schema settings that were in place at the time they were loaded.

Schemas: Select the schema to edit. Schemas shown in red in this list are not valid schemas.
Add new: Add a new schema. You will be prompted with the New Schema Dialog Box for the name to use to identify the schema. This name must be unique amongst the list of schemas.

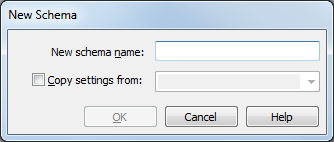

Within the New Schema dialog box, you can use the Copy settings from checkbox and drop down list to select an existing schema to copy across to the new schema.
Import: Import a new schema from a file. You will be prompted with the Import Schema dialog box for the details of the file to import.
Delete: Delete the selected schema.
Rename: Rename the selected schema. The new name for the schema must be unique amongst the list of schemas.
Messages: Click to show a brief explanation for why the currently selected schema is regarded as invalid. This button is only available when an invalid schema is selected.
Fields: Lists the fields present within the selected schema. Select the field that you would like to edit. The order of fields in the list is significant - it determines the order of fields in CSV files and in Prolog files.
- Add: Add a new field to the schema. You will be prompted for the name and type of the new field.
- Move up: Move the selected field up in the list of fields.
- Move down: Move the selected field down in the list of fields.
- Delete: Delete the selected field from the list.
- Edit: Change the name and/or type of the selected field.

Changes made to the schemas are saved to the users MEGS_Log configuration file when you click the Ok button.
