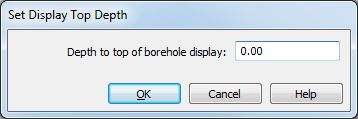

Set Display Top Depth dialog box
Use this dialog box to set the depth of the top of the currently selected borehole to an exact value.
If the left borehole field is currently selected then this dialog changes the top depth of the left hand side of the display. Otherwise the depth of the right hand side of the display is changed. In this last case, if the Link Scrollbars setting is on, the depth of the left hand side will be changed by the same amount (the difference in the depth of the left to the right borehole will be maintained).
You can display this dialog box using the
Set Display
Top Depth command under the View menu or the
Set Display Top Depth toolbar icon
(
).
