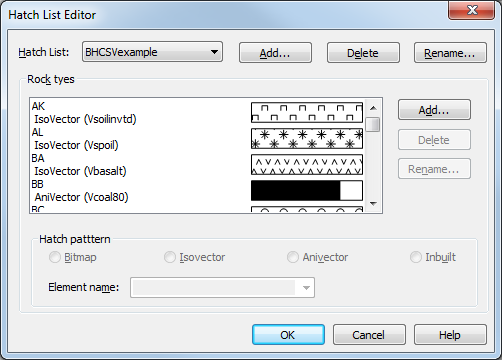

Hatch List Editor dialog box
Use the Hatch List Editor dialog box to edit the lists of rock types and the hatch that is associated with each rock type.
Unless your administrator has enabled Client mode, you can display this dialog box by clicking the Hatch List Editor button on the Settings tab of the Options dialog box. If Client mode has been enabled then this dialog box is not available.
- Hatch list: Choose the hatch list to edit.

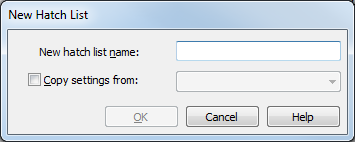

- Add: Create a new hatch list. You will
be prompted with the New Hatch List dialog box for the name to use to identify
the hatch list. This name must be unique amongst the list of hatch lists.
Within the New Hatch List dialog box, you can use the Copy settings from checkbox and drop down list to select an existing hatch list to copy across to the new hatch list.
- Delete: Delete the selected hatch list. If the selected hatch list is the hatch list that is currently in use then all units will be drawn showing "No record".
- Rename: Rename the selected hatch list. The new name must be unique amongst the list of hatch lists. If the selected hatch list is the hatch list that is currently is use, it will continue to be in use.
- Rock types: Shows the rock types and the vector or bitmaps associated with each rock type. Rock types shown in red have not been given a valid vector, bitmap or inbuilt hatch name.
- Add: Add a new rock type to the selected hatch list.
- Delete: Delete the selected rock type from the selected hatch list.
- Rename: Rename the selected rock type.
- Hatch pattern: Shows the type of hatch
pattern for the selected rock type. Click one of the following
alternatives to set a new type of hatch pattern.
- Bitmap: A bitmap hatch. You can use the Bitmap Editor dialog box to edit the list of bitmaps.
- Isovector: A vector hatch, with the width and height of the vector hatch drawn to the same scale. You can use the Vector Editor dialog box to edit the list of vectors.
- Anivector: A vector hatch, with the height of the vector drawn as specified by the hatch and the width drawn at a different scale so that it occupies the full width of the bore field.
- Inbuilt: A hatch defined internal to MEGS_Log, that cannot be edited by the user.
- Element name: The name of the bitmap, vector or inbuilt hatch.
Changes made to the hatch lists are saved to the users MEGS_Log configuration file when you click the Ok button.
