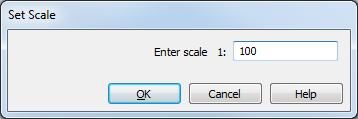

Select Scale dialog box
Use this dialog box to change the Scale setting to a precise value.
A scale of 1:100 means that one millimetre on the screen will represent 100 millimetres (0.1 metres) of depth in the hole.
The Scale setting is used for both screen display and for printing.
You can display this dialog box by selecting the
Scale
command unde the View menu, or the
Set Scale command under the Borehole and
Trace popup menus, or clicking the Scale toolbar icon
(
).
