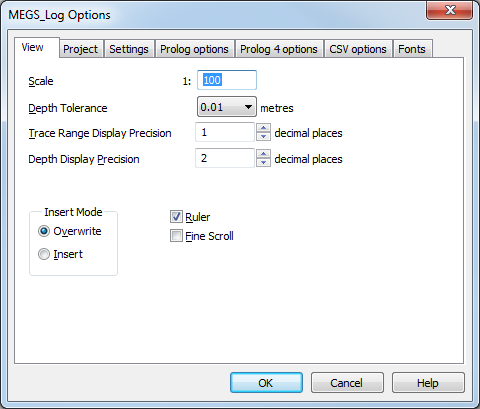

Options dialog box (View tab)

Use this tab of the Options dialog box to change settings relating to the MEGS_Log display.

Settings available are:

Scale: affects the scale of the borehole for both the screen display and for printing.
Depth Tolerance: affects the resolution or granularity of changes to unit boundaries.
Trace Range Display Precision: sets the number of decimal places used for displaying the minimum and maximum range of each trace at the bottom of each trace field.
Depth Display Precision: sets the number of decimal places used for displaying depths in MEGS_Log, such as the depth labels down the left hand side of each bore and trace field. The Depth Display Precision should be sufficient to represent all depths available with the current Depth Tolerance - if not then a warning message is displayed.
Insert Mode: affects whether underlying units move with a change in a boundary.
Ruler: determines whether the Ruler is shown when the mouse is in the right hand pane of the display.
Fine Scroll: affects the increment that the display moves by when it is scrolled up or down.
